A Comprehensive Guide to DC Film Capacitors: Selection, Applications, and Advantages

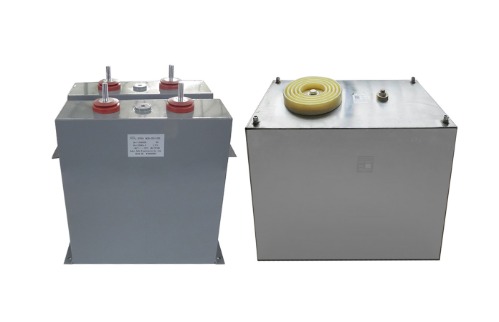

Understanding DC Film Capacitors and Their Core Functionality

DC film capacitors represent a critical category of passive electronic components specifically engineered for use in direct current (DC) circuits. Unlike their electrolytic counterparts, these capacitors utilize a thin plastic film as their dielectric material, which is meticulously metallized or equipped with foil electrodes. This fundamental construction is the source of their renowned stability, reliability, and excellent electrical characteristics. They are indispensable in a vast array of applications, from filtering and noise suppression to energy storage and snubber circuits. The term DC Film Capacitor Manufactory signifies a specialized production facility dedicated to the precise engineering and fabrication of these components, focusing on stringent quality control to meet the demanding requirements of modern electronics. Understanding the intrinsic properties of these capacitors is the first step toward leveraging their full potential in any design.

Key Electrical Properties

The performance of a DC film capacitor is defined by several key electrical properties that engineers must carefully consider during the selection process. These parameters directly influence how the capacitor will behave within a circuit and whether it will perform its intended function effectively over its entire operational lifespan.

• Capacitance Value and Tolerance: This indicates the amount of electrical energy the capacitor can store. Film capacitors are available in a wide range of values, typically from picofarads (pF) to microfarads (μF). Tolerance specifies the allowable deviation from the stated nominal capacitance value, which is often tight for film types (e.g., ±1%, ±5%).
• Rated Voltage (DC Working Voltage): This is the maximum continuous DC voltage that can be applied to the capacitor without risking breakdown. It is crucial to select a capacitor with a voltage rating that exceeds the maximum expected voltage in the circuit, including any transients or spikes, to ensure long-term reliability.
• Dissipation Factor (DF) or tan δ: This parameter measures the inherent energy loss within the capacitor. A lower dissipation factor is always desirable, as it indicates higher efficiency and less self-heating, which is particularly important in high-frequency or high-power applications.
• Insulation Resistance (IR): This measures the resistance of the dielectric material to leakage current. A high insulation resistance is a hallmark of quality film capacitors, ensuring minimal energy loss through leakage over time.
• Equivalent Series Resistance (ESR): While typically very low in film capacitors, ESR is the effective resistance in series with the capacitor that accounts for all losses. Low ESR is critical for applications involving high ripple currents, such as in switching power supplies.

Selecting the Right DC Film Capacitor for Your Project

Choosing the optimal DC film capacitor is a nuanced process that extends beyond simply matching capacitance and voltage ratings. It involves a deep understanding of the application's environment, electrical stresses, and performance expectations. A misstep in selection can lead to premature failure, circuit malfunction, or inefficient operation. Therefore, a systematic approach is required, weighing the advantages and limitations of different dielectric films against the specific demands of the project. This section will guide you through the critical decision-making factors, helping you navigate the selection process with confidence and ensuring that the component you choose not only fits the schematic but also excels in its real-world operation.

Comparing Common Dielectric Film Types

The type of plastic film used as the dielectric is the primary differentiator among various DC film capacitors. Each material offers a unique set of trade-offs between cost, size, electrical properties, and temperature stability. The following table provides a comparative overview of the most prevalent dielectric films used in the industry. This comparison is essential for making an informed choice, as the dielectric dictates the capacitor's fundamental behavior.

The table below outlines the key differences between Polyester (PET), Polypropylene (PP), Polyethylene Naphthalate (PEN), and Polyphenylene Sulfide (PPS) films. For instance, while Polyester offers a good balance of cost and performance for general-purpose DC applications, Polypropylene is superior for high-frequency and high-power uses due to its extremely low dissipation factor. Conversely, Polyethylene Naphthalate provides better temperature stability than Polyester, making it suitable for more demanding environments.

This detailed comparison shows that there is no single "best" dielectric; the choice is entirely application-dependent. Understanding these material properties is a fundamental aspect of the work done at any reputable DC Film Capacitor Manufactory, where the focus is on matching the right material to the client's needs.

Environmental and Operational Considerations

Beyond the electrical specifications, the physical operating environment plays a pivotal role in the longevity and reliability of a DC film capacitor. Factors such as ambient temperature, humidity, mechanical stress, and soldering conditions must be meticulously evaluated.

• Temperature Range: Every capacitor is rated for a specific operating temperature range. It is vital to ensure that this range encompasses both the steady-state operating temperature and any potential thermal spikes within the equipment. Prolonged exposure to temperatures beyond the rating will drastically shorten the component's life.
• Humidity and Harsh Environments:
• For applications exposed to high humidity or corrosive atmospheres, capacitors with robust encapsulation (e.g., epoxy resin coating, hermetically sealed metal cases) are necessary to prevent moisture ingress, which can degrade dielectric properties and lead to catastrophic failure.
• Mechanical Robustness: The construction of the capacitor must withstand the mechanical vibrations and shocks inherent in its application. For example, capacitors in automotive or aerospace systems require specially designed leads and internal construction to prevent breakage.
• Flammability Requirements: In safety-critical applications, capacitors may need to comply with specific flammability ratings (e.g., UL 94 V-0) to prevent the propagation of fire in case of a component failure.

Addressing these considerations upfront is crucial for how to choose a DC link film capacitor for long-term reliability, ensuring the selected component will perform consistently throughout the expected lifespan of the end product.

Primary Applications and Use Cases in Modern Electronics

The unique combination of properties offered by DC film capacitors makes them the component of choice in a diverse spectrum of electronic systems. Their ability to handle high voltages, exhibit low losses, and maintain stability under varying conditions unlocks functionalities that are difficult to achieve with other capacitor technologies. From the conversion and control of power to the precise processing of signals, these capacitors are silently enabling technological advancement across industries. This section delves into the most significant application areas, illustrating why a deep understanding of these uses is vital for any design engineer or procurement specialist working with a DC Film Capacitor Manufactory.

Power Supply and Conversion Systems

Perhaps the most extensive application area for DC film capacitors is within power electronics. They are fundamental components in switch-mode power supplies (SMPS), inverters, converters, and motor drives. In these systems, they perform several critical functions that are essential for efficient and stable operation.

• DC-Link Capacitors: In inverters and converters that change DC to AC or to a different DC voltage, the DC-link capacitor is positioned between the rectifier and the inverter stage. Its primary role is to stabilize the DC bus voltage by absorbing and supplying high ripple currents, thereby minimizing voltage fluctuations. This is a demanding application that requires capacitors with low ESR and ESL to handle the high ripple currents without excessive heating.
• Input/Output Filtering: Film capacitors are used on both the input and output stages of power supplies to filter out electromagnetic interference (EMI) and high-frequency noise. This ensures compliance with electromagnetic compatibility (EMC) regulations and provides clean power to sensitive downstream components.
• Snubber Circuits: Used across switching devices like IGBTs and MOSFETs, snubber capacitors protect these semiconductors by limiting the rate of rise of voltage (dv/dt) and suppressing voltage spikes that occur during switching transitions. This application demands capacitors with excellent self-healing properties and high pulse handling capability.

The selection process for high voltage DC film capacitor applications in power electronics is particularly rigorous, focusing on pulse strength, RMS current handling, and thermal management to ensure unwavering reliability in critical infrastructure.

Advanced and Niche Applications

Beyond mainstream power electronics, the superior characteristics of film capacitors enable their use in several advanced and niche fields where performance cannot be compromised.

Renewable Energy Systems

In solar photovoltaic (PV) inverters and wind turbine converters, DC film capacitors are employed in the DC-link circuit. They must operate reliably for decades under fluctuating power levels and often in challenging environmental conditions. Their long life and stability make them a perfect fit for these green energy applications, where maintenance and replacement are costly and undesirable.

Electric and Hybrid Vehicles (EV/HEV)

The powertrains of electric vehicles rely heavily on high-performance DC film capacitors. They are used in the main traction inverters that drive the motors, in onboard chargers, and in DC-DC converters. Here, they must exhibit exceptional performance under the hood's high-temperature environment and possess the mechanical integrity to withstand constant vibration. This is a key area where the question of film capacitor vs ceramic capacitor for high frequency is settled in favor of film types due to their higher capacitance stability and voltage handling.

Pulsed Power and Medical Equipment

Applications like defibrillators, MRI machines, and laser systems require capacitors that can discharge a very large amount of energy in an extremely short time. Specialized DC film capacitors, often with metalized electrode designs, are engineered to meet these intense pulse discharge demands safely and repeatedly.

Advantages Over Alternative Capacitor Technologies

When designing a circuit, engineers have a choice among several capacitor technologies, primarily ceramic, electrolytic (aluminum and tantalum), and film. Each has its place, but DC film capacitors offer a compelling set of advantages that make them the preferred solution in numerous scenarios. Understanding these benefits is key to appreciating their value proposition and justifies their specification in designs where performance, longevity, and safety are paramount. This comparative analysis will highlight why film capacitors often outperform their alternatives, providing a clearer rationale for their selection.

Film vs. Ceramic Capacitors (MLCCs)

Multilayer Ceramic Capacitors (MLCCs) are popular for their small size and excellent high-frequency response. However, for many DC applications, film capacitors hold distinct advantages, especially when it comes to film capacitor vs ceramic capacitor for high frequency power applications.

• Capacitance Stability: Ceramic capacitors, particularly those made with Class 2 dielectrics (like X7R, X5R), exhibit significant capacitance change with applied DC bias voltage and temperature. Film capacitors, especially polypropylene, offer remarkably stable capacitance values under varying electrical and environmental conditions, which is critical for timing, filtering, and resonant circuits.
• Voltage Handling: While high-voltage MLCCs exist, film capacitors are generally more readily available and cost-effective for high-voltage DC applications (e.g., above 500V). They also do not suffer from the microphonics and piezoelectric effects that plague ceramic capacitors.
• Reliability and Failure Mode: Film capacitors are known for their "self-healing" property, where a localized dielectric breakdown vaporizes the surrounding metallization, isolating the fault and allowing the capacitor to continue functioning. Ceramic capacitors can fail short-circuit, which can be catastrophic for the circuit.

Film vs. Electrolytic Capacitors

Aluminum electrolytic capacitors are often chosen for their high capacitance per volume and cost-effectiveness. Nevertheless, film capacitors surpass them in several key areas, justifying their use in more demanding applications.

• Longevity and Lifetime: Electrolytic capacitors have a limited lifetime, often quantified in thousands of hours, as their electrolyte gradually dries out. Film capacitors, having no liquid electrolyte, boast an exceptionally long operational life, typically exceeding 100,000 hours, and are not subject to wear-out mechanisms in the same way.
• Electrical Performance: Film capacitors have a much lower Equivalent Series Resistance (ESR) and lower dissipation factor across a wide frequency range. This makes them vastly more efficient in applications with high ripple currents, reducing heat generation and improving overall system efficiency.
• Polarity and Reliability: Electrolytic capacitors are polarized, meaning they must be connected with the correct DC polarity or they will fail. Film capacitors are non-polarized, simplifying installation and eliminating the risk of incorrect polarization failure. Furthermore, the robust construction of film capacitors makes them less susceptible to shock and vibration.

This analysis underscores why for long life DC power film capacitor requirements, such as in industrial automation or renewable energy infrastructure, film technology is the unequivocal choice over electrolytics.

Ensuring Reliability and Long-Term Performance

Specifying a high-quality DC film capacitor is only part of the equation for a successful design. Ensuring its reliability over the intended lifespan of the product requires careful attention to derating, installation, and operational conditions. The inherent robustness of film capacitors can be compromised by improper use, leading to field failures that could have been easily prevented. This section outlines best practices and key considerations for maximizing the performance and longevity of these components in your electronic systems. Adhering to these guidelines is a practice championed by every reputable DC Film Capacitor Manufactory and is essential for building durable and trustworthy products.

The Critical Practice of Voltage and Temperature Derating

Derating is the practice of operating a component below its maximum rated limits to enhance reliability and extend its service life. For DC film capacitors, the two most critical parameters to derate are voltage and temperature.

• Voltage Derating: It is a standard and highly recommended practice to apply a derating factor of at least 20% to the capacitor's rated DC voltage. For example, a capacitor rated for 100V DC should not be subjected to continuous voltages above 80V in the application. This margin accounts for voltage transients, spikes, and long-term dielectric wear, significantly reducing the probability of dielectric breakdown.
• Temperature Derating: Similarly, the capacitor should be operated at a temperature well below its maximum rated temperature. Keeping the core temperature of the capacitor (which is ambient temperature plus internal heating from ripple current) at least 10-20°C below the maximum rating can dramatically increase its operational life. As a rule of thumb, for every 10°C reduction in operating temperature, the life expectancy of a film capacitor approximately doubles.

Understanding and implementing how to test a DC film capacitor for failure is part of a robust quality assurance process, but preventing failure through prudent derating is a far more effective strategy.

Handling, Storage, and Soldering Recommendations

Physical handling and assembly processes can also impact the performance of film capacitors. Following manufacturer guidelines is paramount.

• Mechanical Stress: Avoid subjecting the capacitor body and especially the leads to excessive bending or mechanical stress. For radial leaded capacitors, the leads should be bent no closer than a specified distance (e.g., 3-5 mm) from the encapsulation to avoid damaging the internal contact.
• Storage Conditions: Film capacitors should be stored in a cool, dry environment. While they are less hygroscopic than MLCCs, prolonged exposure to high humidity is still undesirable. For surface-mount devices, it is critical to follow the manufacturer's Moisture Sensitivity Level (MSL) instructions to prevent "popcorning" during reflow soldering.
• Soldering Profiles: Adhere strictly to the recommended soldering temperature and time profiles provided in the manufacturer's datasheet. Excessive heat during wave or reflow soldering can damage the internal structure and melt the plastic film dielectric, permanently degrading the capacitor's performance.
