The Comprehensive Guide to Water Cooled Capacitors: Enhancing Performance and Longevity

Understanding the Fundamentals of Water Cooled Capacitors

Water cooled capacitors represent a critical advancement in the management of thermal energy within high-power electronic and electrical systems. Unlike their air-cooled counterparts, these specialized components utilize the superior heat transfer properties of water to dissipate excess heat, thereby maintaining optimal operating temperatures and ensuring unparalleled reliability and performance in demanding applications.

What Exactly is a Water Cooled Capacitor?

A water cooled capacitor is a passive electronic component designed to store and release electrical energy, integrated with an internal cooling mechanism that circulates water to remove heat generated during its operation. This design is paramount in applications where high ripple currents and rapid charge-discharge cycles generate significant thermal load, which, if left unchecked, can degrade dielectric materials, increase equivalent series resistance (ESR), and ultimately lead to premature failure. The core principle hinges on the fact that water has a much higher specific heat capacity and thermal conductivity compared to air, allowing it to absorb and carry away heat far more efficiently.

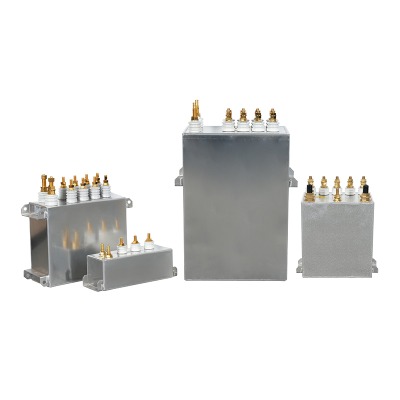

The construction typically involves a metallic housing, often copper or aluminum, which contains the capacitor element (a combination of electrodes and dielectric). This housing is designed with an internal labyrinth or channels that allow coolant to flow in close proximity to the heat-generating parts. Ingress and egress ports are fitted for connection to an external cooling system. This entire assembly is hermetically sealed to prevent any leakage of coolant into the capacitor element or vice-versa. The choice of coolant can vary; while deionized water is common due to its excellent thermal properties and low electrical conductivity, mixtures with glycol or other inhibitors are sometimes used to prevent freezing or corrosion.

The Critical Role of Cooling in Capacitor Function

Heat is the primary enemy of any capacitor. The lifespan of a capacitor is inversely proportional to its operating temperature; for every 10°C rise above its rated temperature, the operational life is typically halved. This Arrhenius law of failure rates underscores the importance of effective thermal management. In water cooled capacitors, the active cooling system directly counters this thermal degradation. By maintaining the core temperature well within safe limits, these capacitors can:

• Sustain higher ripple current ratings without derating.
• Maintain stable capacitance and ESR values over a longer period.
• Operate reliably in high-ambient-temperature environments.
• Achieve a significantly longer service life compared to similarly rated air-cooled units.

This makes them indispensable in scenarios where failure is not an option and where passive cooling methods are simply insufficient.

Key Advantages of Implementing Water Cooling in Capacitive Systems

The integration of water cooling technology into capacitors brings forth a multitude of benefits that directly translate to system-level improvements. These advantages are most pronounced in high-power density applications where space is constrained and efficiency is paramount.

Superior Thermal Management and Power Density

The most significant advantage is the dramatic improvement in heat dissipation. Water's thermal conductivity is approximately 25 times that of air, and its specific heat capacity is about four times greater. This means a water cooling system can remove the same amount of heat with a much smaller volume flow rate and a lower temperature rise in the coolant itself. Consequently, water cooled capacitor for high power inverter systems can be designed to be more compact while handling the same power, or can handle significantly higher power in the same form factor. This leads to an overall increase in the power density of the entire system, a crucial factor in modern electronics like renewable energy inverters and industrial motor drives.

Enhanced Reliability and Operational Lifespan

By consistently maintaining lower operating temperatures, water cooled capacitors experience less thermal stress. The electrochemical processes that lead to the evaporation of electrolyte and the gradual degradation of the dielectric are slowed down considerably. This results in a slower drift of key parameters like capacitance and ESR over time. For instance, where a standard capacitor might see a 20% loss in capacitance after 10,000 hours at 85°C, a water-cooled equivalent operating at 55°C might show only a 5% loss after the same duration, effectively doubling or even tripling the component's useful life and reducing the total cost of ownership through less frequent replacements.

Selecting the Right Water Cooled Capacitor for Your Application

Choosing an appropriate water cooled capacitor is a nuanced process that requires careful consideration of electrical, thermal, and mechanical parameters. A misstep in selection can lead to inadequate performance or system failure.

Critical Electrical Parameters

The primary electrical specifications remain capacitance (µF), voltage rating (VDC), and ripple current (Arms). However, with cooling, the ripple current capability is greatly enhanced. It is vital to consult the manufacturer's data sheets to understand the ripple current rating at different coolant flow rates and temperatures. The low ESR water cooled capacitor is particularly sought after for applications like frequency converters and induction heating, because low ESR minimizes intrinsic heat generation (I²R losses), making the cooling system's job easier and improving overall efficiency. Furthermore, the capacitance value must be stable over the intended frequency and temperature range of the application.

Thermal and Mechanical Considerations

The thermal resistance from the capacitor core to the coolant (Rth) is a key figure of merit. A lower Rth indicates a more efficient design that transfers heat into the coolant more effectively. This parameter is dependent on the internal construction, materials used, and the flow rate of the coolant. The required flow rate and pressure drop across the capacitor must be compatible with the existing cooling system pump. Physically, the connector types (threaded ports for hoses) and their orientation must be compatible with the system's layout. For example, a compact water cooled capacitor for induction heating must not only have the right electrical specs but also a form factor that fits into the often-cramped quarters of an induction heating power supply.

Diverse Industrial Applications of Water Cooled Capacitors

The unique benefits of water cooled capacitors make them the component of choice across a wide spectrum of heavy-duty industries. Their ability to handle extreme electrical stresses while remaining cool underpins the reliability of many modern technologies.

Power Electronics and Renewable Energy

In the realm of renewable energy, large-scale solar and wind inverters convert DC power to grid-compatible AC power. This process involves high switching frequencies and substantial ripple currents in the DC-link capacitors. Here, water cooled DC-link capacitor units are deployed to ensure stability and longevity. They handle the high ripple currents while the integrated cooling keeps them at a stable temperature, preventing thermal runaway and ensuring decades of reliable service with minimal maintenance, which is crucial for remote and inaccessible installations like offshore wind farms.

Industrial Heating and Melting Processes

Induction heating and melting systems operate at high frequencies (from kHz to MHz) and very high power levels (often into the megawatts). The tank capacitors used in these systems' resonant circuits are subjected to enormous currents and intense electromagnetic fields. An industrial water cooled capacitor for melting furnace is specifically engineered for this harsh environment. Its robust construction and efficient cooling prevent dielectric breakdown under extreme electrical and thermal stress, enabling continuous operation in foundries and metal processing plants for melting, forging, and heat treating metals.

Medical and Scientific Equipment

High-power applications are not limited to heavy industry. Equipment like magnetic resonance imaging (MRI) machines and particle accelerators require extremely stable and powerful electrical systems. Water cooled capacitors are used in the gradient amplifiers and RF amplifiers of such equipment, where their stability and reliability are non-negotiable for ensuring accurate diagnostics and scientific measurements.

A Comparative Analysis: Water Cooling vs. Air Cooling for Capacitors

To truly appreciate the value proposition of water cooled capacitors, a direct comparison with traditional air-cooled methods is essential. The differences are substantial and impact nearly every aspect of system design and operation.

The following table outlines the key distinctions between these two cooling methodologies:

As the table demonstrates, the choice is not about which is universally better, but which is more appropriate for the specific application. Water cooling is the unequivocal choice for pushing the boundaries of power and reliability.

Installation, Maintenance, and System Integration Best Practices

Proper installation and diligent maintenance are paramount to realizing the full benefits and longevity of a water cooled capacitor. Neglecting these aspects can lead to leaks, clogging, corrosion, and catastrophic failure.

Proper Installation Techniques

Mechanical mounting must be secure but should not distort the capacitor's housing, as this can stress welds and seals. It is crucial to follow the manufacturer's specified torque values for any mounting hardware. The plumbing connections require careful attention. Use appropriate seals (e.g., O-rings, washers) and avoid over-tightening the fittings, which can damage the ports. The capacitor should be positioned such that air can be easily purged from its internal channels during system filling. Ideally, the ports should be oriented vertically upwards. The cooling loop should include a filter to trap particulates that could clog the narrow internal passages of the capacitor.

Ongoing Maintenance and Monitoring

A preventive maintenance schedule is essential. The coolant should be checked regularly for quality, including pH level, electrical conductivity, and the presence of inhibitors. Degraded coolant can lead to internal corrosion and plating, which drastically reduces cooling efficiency and can cause electrical shorts. The system should be periodically flushed and refilled with fresh, appropriate coolant (e.g., deionized water with anti-corrosion additives). Regularly inspect all hoses, clamps, and fittings for signs of wear, cracking, or leaks. Monitoring the temperature of the coolant entering and leaving the capacitor can provide valuable diagnostic information; a rising delta-T (temperature difference) can indicate reduced flow due to clogging or a pump issue, or increased heat generation from the capacitor itself, signaling potential impending failure.

Troubleshooting Common Issues in Water Cooled Capacitor Systems

Even with a perfect design and installation, issues can arise. Understanding how to diagnose common problems is key to minimizing downtime.

Identifying and Resolving Coolant Leaks

A leak is the most immediate and obvious failure mode. If coolant is detected, the system must be shut down immediately to prevent damage to electrical components. Visually inspect all external connections and the capacitor body for the source. Minor leaks at fittings can often be resolved by tightening the connection or replacing a seal. However, if the leak is from the capacitor body itself (a crack or failed weld), the unit must be replaced. Using a pressure tester on the cooling loop during maintenance can help identify slow leaks that are not immediately visible.

Addressing Reduced Cooling Performance

If the capacitor is running hotter than usual, the root cause is often related to the cooling system, not the capacitor. First, check the coolant flow rate; a clogged filter, failing pump, or an airlock in the loop can severely reduce flow. Next, check the coolant quality; fouled coolant with high conductivity or biological growth can deposit scale on internal surfaces, acting as a thermal insulator. The external heat exchanger (radiator) should also be inspected to ensure it is effectively rejecting heat to the environment (e.g., it is not clogged with dust). If all these are ruled out, the capacitor itself may be failing, manifesting as an increase in Equivalent Series Resistance (ESR), which generates more heat for the same current. Measuring the capacitor's ESR can confirm this.

The Future of Capacitor Cooling Technology

The evolution of water cooled capacitors is ongoing, driven by the relentless demand for higher power, smaller size, and greater reliability. Future trends point towards the integration of smart monitoring features directly into the capacitor assembly. Sensors for real-time measurement of internal temperature, pressure, and even ESR could provide predictive maintenance data, alerting system controllers to impending issues before they cause downtime. Furthermore, research into new dielectric materials with inherently lower losses and higher temperature tolerance will work synergistically with advanced cooling techniques to create the next generation of ultra-high-power capacitive energy storage solutions.
