The Ultimate Guide to DC Film Capacitors: Selection, Applications, and Manufacturing Insights

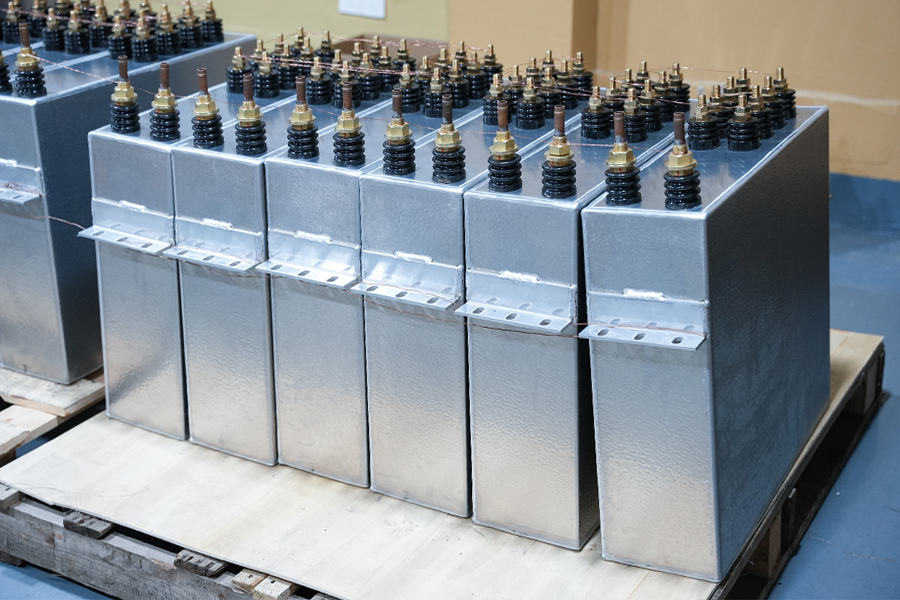

Understanding the Role of a Specialized DC Film Capacitor Manufactory

In the intricate world of electronics, the provenance of components is as critical as their specifications. A dedicated DC Film Capacitor Manufactory represents more than just a production facility; it is a hub of specialized expertise focused on the precise engineering and reliable mass production of Direct Current (DC) film capacitors. These manufacturers distinguish themselves through a deep understanding of dielectric materials, metallization techniques, and the unique challenges associated with DC applications, such as voltage handling, self-healing properties, and long-term stability. Unlike generic component producers, a manufactory dedicated to this niche invests heavily in research and development to push the boundaries of performance metrics like capacitance stability, equivalent series resistance (ESR), and tolerance to environmental stressors such as temperature fluctuations and humidity.

The manufacturing process itself is a complex symphony of stages, each requiring meticulous control. It begins with the selection of high-grade polymer films, such as Polypropylene (PP) or Polyester (PET), which are then meticulously metallized. The design and construction of the capacitor—whether it's a stacked, wound, or segmented film type—are tailored to its intended DC use case. For engineers and procurement specialists, partnering with a true manufactory, rather than a distributor or a generalist factory, ensures direct access to technical knowledge, custom solutions, and consistent quality control that is traceable back to the production line. This direct relationship is invaluable for designing in reliability and avoiding the pitfalls of sub-standard components that can lead to system failures.

Key Factors for Selecting High Voltage DC Link Film Capacitors

Selecting the appropriate capacitor for a high-voltage DC link is a decision that profoundly impacts the efficiency, size, and reliability of power electronic systems like inverters, motor drives, and industrial power supplies. The DC link capacitor sits between the rectifier and the inverter, acting as a filter to smooth the rectified voltage and as an energy buffer to supply peak currents to the inverter. The requirements for this component are exceptionally stringent.

Critical Performance Parameters

Several non-negotiable parameters must be evaluated when sourcing these components. First and foremost is the rated DC voltage, which must have a sufficient safety margin above the system's maximum operating voltage to handle transients and spikes. The capacitance value must be chosen to limit the DC link ripple voltage to an acceptable level, which is typically calculated based on the system's power rating and switching frequency. Furthermore, the capacitor's ESR influences the internal heat generation (I²R losses); a lower ESR is crucial for high-efficiency and high-frequency applications to minimize losses and prevent thermal runaway. Another vital characteristic is the ripple current rating, which defines the maximum AC current the capacitor can handle without exceeding its temperature limits. A capacitor with an insufficient ripple current rating will overheat and fail prematurely.

Material and Construction Considerations

The choice of dielectric film is paramount. Polypropylene (PP) film capacitors are overwhelmingly preferred for high-voltage DC links due to their excellent combination of properties:

• Low Dielectric Losses: PP has a very low dissipation factor (tan δ), which translates directly into low ESR and reduced self-heating under high ripple current.
• High Dielectric Strength: It can withstand very high electric fields, allowing for compact designs even at high voltage ratings.
• Superior Self-Healing: The metallized construction allows for a self-healing mechanism. If a dielectric breakdown occurs at a weak spot, the resulting arc vaporizes the thin metal layer around the fault, isolating it and allowing the capacitor to continue functioning with only a negligible loss of capacitance.

When comparing different options, it's essential to look beyond the datasheet and understand the manufacturer's testing protocols and quality guarantees for these critical parameters.

Advantages of Using Long Life DC Film Capacitors for Power Electronics

The operational lifespan of a power electronic system is often determined by the lifespan of its capacitors. Electrolytic capacitors, traditionally used in many applications, are a common point of failure due to electrolyte evaporation and wear-out mechanisms. This is where long life DC film capacitors for power electronics offer a transformative advantage. Their solid-state construction, devoid of liquid electrolytes, eliminates the primary failure mode of their electrolytic counterparts. The lifespan of a film capacitor is typically defined by a concept known as "useful life" or "service life," which is often rated at tens or even hundreds of thousands of hours under rated conditions.

The longevity of these components stems from several inherent features. The self-healing property, as mentioned, ensures that minor dielectric imperfections do not lead to catastrophic failure but are instead neutralized, allowing the capacitor to endure. Furthermore, film capacitors are far less susceptible to environmental factors like temperature cycling. While electrolytic capacitors have their lifespan halved for every 10°C rise in temperature above their rating (per the Arrhenius law), film capacitors exhibit a much more gradual and predictable aging process. This extended service life translates into significant benefits for end-users:

• Reduced Maintenance Costs: Systems require less frequent servicing and component replacement, especially important in hard-to-access or critical applications.
• Higher System Reliability: The risk of unexpected downtime due to capacitor failure is drastically reduced, increasing overall equipment availability.
• Better Total Cost of Ownership (TCO): Although the initial purchase price may be higher than an electrolytic capacitor, the extended lifespan and reduced maintenance often make film capacitors more economical over the entire life of the product.

For designers of solar inverters, EV charging stations, and industrial automation equipment, specifying long-life DC film capacitors is a strategic decision for building robust and market-leading products.

Exploring the Benefits of Polypropylene Film Capacitors for DC Applications

Among the various dielectric materials available, polypropylene (PP) has emerged as the gold standard for a vast majority of demanding DC applications. The dominance of polypropylene film capacitors for DC applications is not accidental; it is the direct result of a unique set of electrical and physical characteristics that align perfectly with the needs of modern electronics.

Unmatched Electrical Properties

PP film offers an nearly ideal combination of properties for energy storage and filtering. Its dielectric constant, while not the highest, is stable over a wide range of frequencies and temperatures. More importantly, it has an extremely low dissipation factor (tan δ), which is a measure of energy lost as heat. This makes PP capacitors exceptionally efficient, a critical factor in minimizing losses in high-power circuits. The material's high dielectric strength allows manufacturers to produce capacitors that are both compact and capable of handling thousands of volts. This combination of low losses and high voltage capability is why PP capacitors are the default choice for snubber circuits, DC-link filtering, and AC motor run applications.

Stability and Reliability

Beyond the initial properties, the stability of PP over time and under stress is a key benefit. PP capacitors exhibit minimal capacitance drift with changes in temperature and voltage compared to other dielectrics like polyester (PET). Their capacitance change over temperature is predictable and linear, which is crucial for precision timing and filtering circuits. This stability, coupled with the self-healing mechanism, creates a component that is not only high-performing but also incredibly robust and reliable over decades of service.

The following table contrasts the general properties of Polypropylene (PP) with other common film dielectrics in a DC context:

How to Identify a Reliable DC Film Capacitor Supplier

Finding a component is one task; identifying a truly reliable DC film capacitor supplier is another. In a global market, reliability encompasses not only the quality of the product arriving at your dock but also technical support, supply chain stability, and consistent conformance to specifications. A reliable supplier acts as a partner in your design process.

Hallmarks of a Trusted Supplier

First, transparency is key. A reputable supplier will provide comprehensive and accurate datasheets with detailed performance curves (e.g., capacitance vs. temperature, ESR vs. frequency) and clear definitions of ratings and lifetimes. They will have robust quality management systems (e.g., ISO 9001) and will be willing to share audit reports or certification details. Second, technical capability is crucial. Can their application engineers answer deep technical questions? Do they offer custom design services or modifications to standard products to fit your specific needs? This level of support is indicative of a manufacturer or an authorized distributor with direct engineering ties, not just a reseller.

Third, evaluate their manufacturing and testing rigor. Do they perform 100% testing on key parameters like capacitance, ESR, and leakage current? What are their procedures for surge voltage testing and life testing? A supplier that invests in advanced testing equipment and stringent quality control protocols is investing in your product's reliability. Finally, consider their logistical competence. Do they have a proven track record of on-time delivery? Do they manage their inventory effectively to prevent allocation issues or long lead times? A reliable supplier ensures that your production lines are never halted due to component shortages.

Technical Specifications for Custom Designed DC Film Capacitors

While standard off-the-shelf capacitors serve many applications, the most advanced and optimized systems often require tailored solutions. This is where the expertise of a manufactory in producing custom designed DC film capacitors becomes invaluable. Customization allows engineers to specify exact parameters that align perfectly with their unique operational requirements, thermal management constraints, and physical form factors.

The Customization Process

The process typically begins with a detailed consultation between the design engineer and the manufacturer's application team. Key specifications that can be tailored include:

• Capacitance and Voltage: Precise values outside standard series to meet specific energy storage or filtering needs.
• ESR and Ripple Current: Optimized for particular switching frequencies and current waveforms to minimize losses.
• Termination Style: Choices between solder pins, screw terminals, busbar connections, or surface-mount options to match the PCB or assembly design.
• Case Size and Shape: Designing a non-standard enclosure to fit into confined spaces or to integrate with a specific cooling system.
• Specialized Materials: Using films with specific temperature ratings or flame-retardant epoxy resins for harsh environments.

Engaging in a custom design project requires a higher level of commitment and collaboration but results in a component that is not a compromise but an optimal solution, potentially enhancing performance, improving reliability, and reducing the overall size and cost of the final assembly. It is the ultimate way to leverage the full capabilities of a dedicated DC Film Capacitor Manufactory.
