Melted Capacitors Explained: Root Causes, Prevention Tips, and Fixes

What Are Melted Capacitors and Why They Matter

Melted capacitors are capacitors that have physically deformed, leaked, or partially melted due to excessive heat, electrical stress, or prolonged overloading. In electronic circuits, capacitors store and release electrical energy, filter noise, and stabilize voltage. When they fail by melting, the consequences can range from reduced performance to complete device failure.

How Melted Capacitors Occur

• Overheating: Sustained high temperatures soften or deform the capacitor casing, especially in poorly ventilated devices.
• Electrical Overload: Applying voltage above the rated value accelerates internal heating and material breakdown.
• Prolonged Stress: Continuous operation near maximum rated capacity shortens the lifespan.

Typical Signs of Melted Capacitors

• Bulging or deformed casing
• Visible melted plastic or leaked electrolyte
• Burn marks near capacitor terminals
• Unusual humming, flickering, or instability in the device

Why Melted Capacitors Matter

• Electrical Safety: Melted capacitors can short-circuit, causing sparks or fire hazards.
• Device Reliability: A single failed capacitor can destabilize the entire circuit.
• Repair Costs: Ignoring early signs can lead to damage in surrounding components.

Capacitor Parameter Comparison: Healthy vs. Melted

Understanding Melted Capacitors: Causes, Prevention, and Solutions

Melted capacitors are a common failure point in electronic circuits, often caused by excessive heat, voltage stress, or environmental factors. To extend the lifespan of electronic devices and prevent costly repairs, it’s important to understand why capacitors melt, how to prevent it, and what solutions are available.

Causes of Melted Capacitors

• Overheating from Poor Ventilation: Limited airflow inside devices can cause heat to build up, softening the capacitor’s casing. Prolonged operation in environments above 40°C accelerates degradation.
• Exceeding Voltage Ratings: Applying voltage beyond the capacitor’s rated maximum increases internal stress, leading to excessive leakage current and localized heating.
• High Ripple Current: Ripple current beyond the rated limit produces additional heat, common in power supply circuits lacking proper filtering.
• Material Degradation Over Time: Electrolyte drying, insulation breakdown, and seal damage can cause melting under load.

Prevention of Melted Capacitors

Solutions for Melted Capacitors

• Inspection and Diagnosis: Use a multimeter or ESR meter to confirm performance and check for surrounding heat damage.
• Safe Removal: Discharge the capacitor fully before desoldering; avoid overheating the PCB.
• Replacement: Choose capacitors with equal or higher voltage and temperature ratings, with higher ripple current tolerance for power circuits.
• Post-Repair Validation: Test voltage stability and ripple suppression, monitor temperature during early operation.

How to Diagnose Melted Capacitors Effectively

Diagnosing melted capacitors requires both visual inspection and electrical testing to confirm performance degradation. Early detection can prevent further circuit damage and reduce repair costs.

Step 1: Visual Inspection

• Check for physical deformation: Bulging tops, warped casing, or melted plastic indicate overheating.
• Look for leakage or burn marks: Leaked electrolyte or darkened PCB areas suggest severe failure.
• Assess nearby components: Heat from a melted capacitor can damage resistors, diodes, or ICs.

Step 2: Electrical Testing

• Capacitance Measurement: Compare the measured value with the rated capacitance. A reduction beyond 20% is a sign of deterioration.
• Equivalent Series Resistance (ESR) Check: High ESR increases heat generation and reduces efficiency.
• Leakage Current Test: Excessive leakage indicates internal breakdown.

Step 3: In-Circuit vs. Out-of-Circuit Testing

• In-circuit: Faster, but other components may affect readings.
• Out-of-circuit: More accurate, recommended for critical circuits.

Diagnostic Parameter Comparison

Step 4: Confirming the Fault

• If both physical and electrical tests confirm abnormalities, replace the capacitor.
• For borderline cases, monitor temperature during operation to catch early failure trends.

Prevention Tips to Avoid Melted Capacitors

Preventing melted capacitors is essential for ensuring the stability, safety, and longevity of electronic systems. By controlling operating conditions, selecting quality components, and following best practices, you can significantly reduce the risk of capacitor failure.

1. Use High-Quality Capacitors

Choosing capacitors from reliable manufacturers is the first step to prevention. With over 40 years of experience, Jiande Antai Power Capacitor Co., Ltd. specializes in induction heating & melting capacitors, DC filter capacitors, and high-voltage capacitors. Their ISO9001 and CE certified products ensure consistent performance under demanding conditions.

2. Maintain Safe Operating Temperatures

• Keep ambient temperature below 40°C for most applications; ideally around 25°C.
• Use heat sinks, cooling fans, or ventilation openings to improve heat dissipation.
• Avoid placing capacitors near high-heat components.

3. Voltage and Current Derating

• Operate capacitors at 70–80% of their maximum rated voltage for extended lifespan.
• Keep ripple current within 80% of rated capacity to prevent internal heating.

4. Regular Maintenance and Inspection

• Perform annual checks for capacitance, ESR, and physical condition.
• Replace capacitors showing bulging, melting, or high ESR values before total failure occurs.

5. Environmental Protection

• Avoid exposure to moisture, corrosive gases, or dust accumulation.
• For high-humidity environments, use capacitors with moisture-resistant designs.

Technical Parameter Guidelines for Prevention

Jiande Antai Power Capacitor Co., Ltd. not only provides high-performance capacitors but also offers customized solutions for specific industrial needs. With advanced manufacturing equipment, imported raw materials, and a skilled R&D team, the company ensures its products meet the highest quality and safety standards. By combining quality component selection with proper usage practices, you can effectively prevent melted capacitors and ensure long-term system reliability.

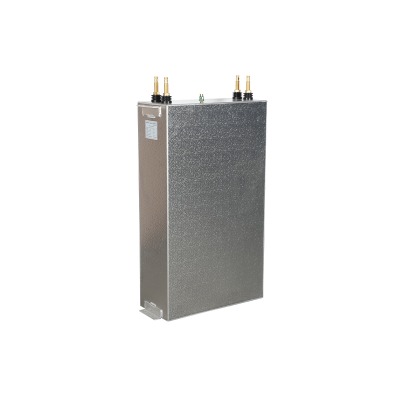

4.0kV 600HZ Induction Furnaces Water Cooled Capacitors
