RAM 3000KVar Middle Frequency Water Cooled Capacitors

RAM 3000KVar Middle-Frequency Water Cooled Capacitors, as an outstanding representative in the field of high-end industrial power regulation and energy storage, are specially designed for high-demand medium-frequency induction heating, smelting, and high-power inverter systems. The capacitor adopts advanced water-cooling heat dissipation technology, which effectively solves the performance degradation and shortened life caused by high temperature under traditional air cooling, ensuring stability and reliability under high-intensity and long-term operation. Its 3000KVar ultra-large capacity design can instantly provide sufficient energy support to meet the stringent requirements of large industrial equipment for power quality and stability. The optimized electrical parameter design makes the capacitor perform well in high-frequency environments, reduces harmonic interference, and improves the overall efficiency of the system. RAM 3000KVar medium-frequency water-cooled capacitors also have self-protection and fault warning functions, built-in multiple safety mechanisms, real-time monitoring of operating status, and immediate response once abnormalities are found, effectively preventing potential risks such as overvoltage and overcurrent, and ensuring equipment safety and production continuity. The overall structure is compact and easy to install and maintain. At the same time, it is made of high-quality materials to ensure that the product is durable and reduces user maintenance costs. Whether considering performance, safety, or economy, RAM 3000KVar medium-frequency water-cooled capacitors are indispensable and preferred components in your medium-frequency power system.

Contact Us

Induction Heating & Melting Capacitors

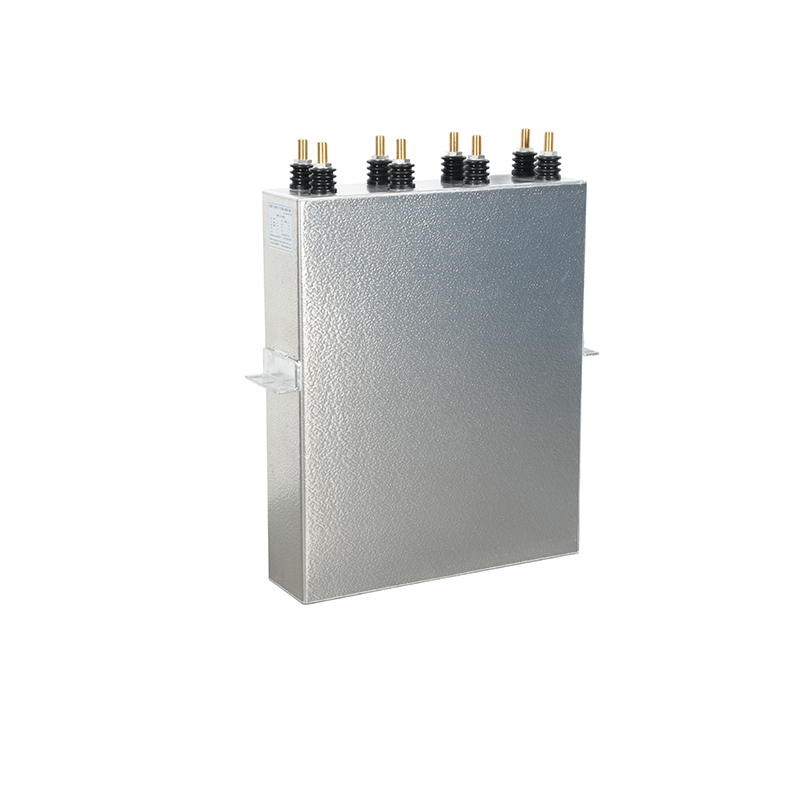

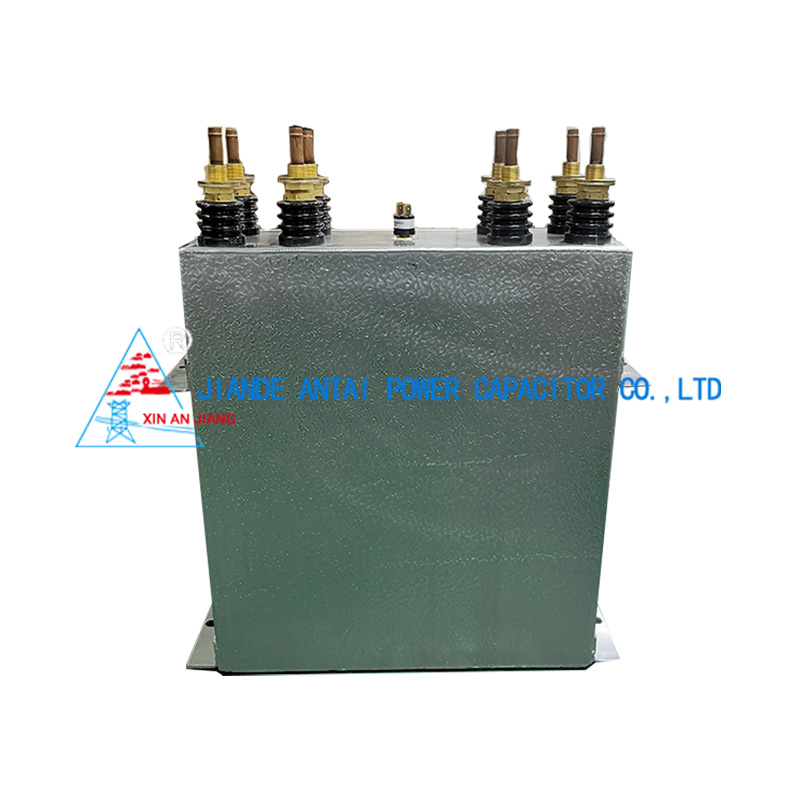

RAM 3000KVar Middle Frequency Water Cooled Capacitor

Designed for high-demand medium-frequency induction heating, smelting, and high-power inverter systems. Supports reactive power compensation, harmonic reduction, and energy storage with water-cooled thermal management.

Product Overview

The RAM series delivers reactive power capacity of 3000 kvar with water-cooled thermal management, supporting medium-frequency induction heating and high-power inverter applications requiring stability and reliability.

The capacitor construction uses metallized polypropylene film dielectric with self-healing properties. The design incorporates advanced water-cooling heat dissipation technology that effectively addresses performance degradation and shortened service life caused by high temperatures under traditional air cooling, ensuring stability and reliability under high-intensity and long-term operation. The 3000 kvar ultra-large capacity design provides sufficient energy support to meet the stringent requirements of large industrial equipment for power quality and stability.

Three configuration options are available to accommodate different system requirements: single cooled-live case design with sub-sections (one terminal connected to casing), single cooled-isolated case design with sub-sections (all terminals isolated), and double cooled-isolated case design without sub-sections (all terminals isolated). This flexibility allows integration with various system grounding requirements and thermal management approaches.

Core Advantages

Water-Cooled Thermal Management

Advanced water-cooling heat dissipation technology effectively solves performance degradation and shortened service life caused by high temperatures under traditional air cooling, ensuring stability and reliability under high-intensity and long-term operation.

Ultra-Large Capacity Design

Delivers 3000 kvar capacity, providing sufficient energy support to meet stringent requirements of large industrial equipment for power quality and stability in medium-frequency applications.

Self-Protection & Fault Warning

Built-in multiple safety mechanisms with real-time operating status monitoring. Immediate response upon detection of abnormalities, effectively preventing overvoltage and overcurrent risks.

Compact & Durable Design

Compact structure facilitates installation and maintenance. Materials selection ensures product durability and reduces user maintenance costs.

Product Characteristics

▸

Dielectric System

Metallized polypropylene film with self-healing properties. Optimized electrical parameter design enables excellent performance in medium-frequency environments.

▸

Water Cooling Circuit

Advanced water-cooling system using materials with thermal conductivity. Effectively removes heat generated during operation, maintaining performance stability during continuous duty cycles.

▸

Case Configurations

Live case design with one terminal connected to casing for grounded systems. Isolated case design with all terminals isolated for floating systems. Sub-section options for internal fault isolation.

▸

Protection & Monitoring

Self-protection and fault warning functions with built-in multiple safety mechanisms. Real-time monitoring of operating status with immediate response to abnormalities.

▸

Discharge & Safety

Internal discharge resistors reduce stored charge to safe levels within 60 seconds. Overvoltage and overcurrent protection ensures equipment safety and production continuity.

Application Scenarios

Medium-Frequency Induction Heating

Provides reactive power compensation and energy storage for medium-frequency induction heating systems, ensuring stable and efficient heating results in demanding applications.

Metal Smelting

Supports metal smelting operations with reliable power delivery and thermal management, meeting stringent requirements of large industrial smelting equipment.

High-Power Inverter Systems

Enables stable operation of high-power inverter systems with reactive power compensation, harmonic reduction, and enhanced system efficiency.

Industrial Power Regulation

Provides comprehensive power regulation and energy storage for industrial applications, improving power quality and system stability across operations.

Installation & Operation Notes

Cooling Water Quality

Use deionized or softened water with conductivity below 10 µS/cm to prevent galvanic corrosion within the cooling channels. Maintain pH between 6.5 and 8.5. Filtration to 50 µm is recommended.

Water Flow Requirements

Flow rate depends on specific power rating and ambient conditions. For standard applications, flow rate of 4-6 L/min per 100 kvar is typical, with inlet temperatures between 15°C and 35°C. Detailed cooling requirements provided with each unit.

Mounting Orientation

Install with cooling ports horizontal to allow air purging during initial fill. Vertical mounting requires careful venting procedures to ensure complete water circulation.

Protection & Monitoring Setup

Verify self-protection and fault warning systems are properly configured during installation. Test safety mechanisms and monitoring functions before energizing the system.

Environmental Conditions

Indoor installation only. Ambient temperature range: -25°C to +50°C. Avoid corrosive gases, conductive dust, and excessive vibration.

Frequently Asked Questions

What is the recommended water flow rate and inlet temperature for the cooling circuit? +

Flow rate depends on the specific power rating and ambient conditions. For standard applications, a flow rate of 4-6 L/min per 100 kvar is typical, with inlet temperatures between 15°C and 35°C. Detailed cooling requirements are provided with each unit based on the operating parameters.

What is the difference between live case and isolated case configurations? +

In live case configuration, one terminal is internally connected to the capacitor casing, requiring the casing to be grounded. This design is typically used in systems where the capacitor is part of a grounded circuit. In isolated case configuration, all terminals are isolated from the casing, providing flexibility for floating or ungrounded system designs.

What is the difference between single cooled and double cooled configurations? +

Single cooled configuration uses one cooling system and includes sub-sections for internal fault isolation. Double cooled configuration provides enhanced thermal management with two independent cooling systems and no sub-sections, suitable for higher power applications requiring maximum heat dissipation capacity.

How do the self-protection and fault warning functions work? +

The capacitor features built-in multiple safety mechanisms that monitor operating status in real-time. Upon detection of abnormalities such as overvoltage or overcurrent, the protection system initiates immediate response, effectively preventing potential risks and ensuring equipment safety and production continuity.

What is the expected service life under continuous operation? +

Service life is influenced by operating temperature, voltage stress, and duty cycle. Under rated conditions with proper cooling, the design life exceeds 80,000 hours. The water-cooled design and self-protection features contribute to extended service intervals, with regular monitoring of capacitance and dissipation factor recommended to track degradation.

TYPE	Rated UN (V)	QN(kvar)	fN (Hz)	IN(A)	CN(uF)
RFM 0.5-1000-2 5S	500	1000	2500	2000	254. 6
RFM 0.8-1000-0.2S	800	1000	200	1250	1243.4
RFM 1.0-1000-0.3S	1000	1000	300	1000	530.5
RFM 0.9-1000-0.9S	900	1000	900	1111.1	218.3
RFM 0.8-1000-3.0S	800	1000	3000	1250	82.9
RFM 0.8-1 000-8.0S	800	1000	8000	1250	31.1
RFM 0.6-1100-1.5S	600	1100	1500	1833.3	324.2
RFM 0.8-1140-25S	800	1140	25000	1425	11.3
RFM 0.6-1150-10S	600	1150	10000	1916.7	50.8
RFM 0.75-1180-50S	750	1180	50000	1573.3	6.7
RFM 1. 5-1200-0.7S	1500	1200	700	800	121.3
RFM 1.8-1200-1.2S	1800	1200	1200	666.7	49.1
RFM 1.25-1200-3.0S	1250	1200	3000	960	40.7
RFM 1.0-1200-9.6S	1000	1200	9600	1200	19.9
RFM 1.2-1200-10S	1200	1200	10000	1000	13.3
RFM 1.25-1200-25S	1250	1200	25000	960	4.9
RFM 1.1-1210-0 5S	1100	1210	500	1100	318.3
RFM 3.0-1 500-6.0S	3000	1500	6000	500	4.4
RFM 0.8-1 500-10S	800	1500	10000	1875	37.3
RFM 1.1-1 650-3.0S	1100	1650	3000	1500	72.3
RFM 0.7-1 680-05S	700	1680	500	2400	1091.3
RFM 0.7-1 680-4.0S	700	1680	4000	2400	136.4
RFM 2 5-1 800-0.7S	2500	1800	700	720	261.9
RFM 3.0-1800-1.0S	3000	1800	1000	600	31.8
RFM 1.5-1815-0.5S	1500	1815	500	1210	256.8
RFM 2 4-1815-0.5S	2400	1815	500	756.3	100.3
RFM 2.2-1815-1.0S	2200	1815	1000	825	59.7
RFM 1.8-1 900-0.3S	1800	1900	300	1055.6	311.1
RFM 0.8-1900-1.0S	800	1900	1000	2375	472.5
RFM 1.2-1900-2 0S	1200	1900	2000	1583.3	105
